This system has especially been designed for Commercial and Industrial users who want to get rid of electricity bill for next few decades leaving behind a zero carbon legacy for next generation.

IN SCOPE:

A.  Non-DCR Topcon N-Type Solar Panel – 585+Wp  x  171 PCS

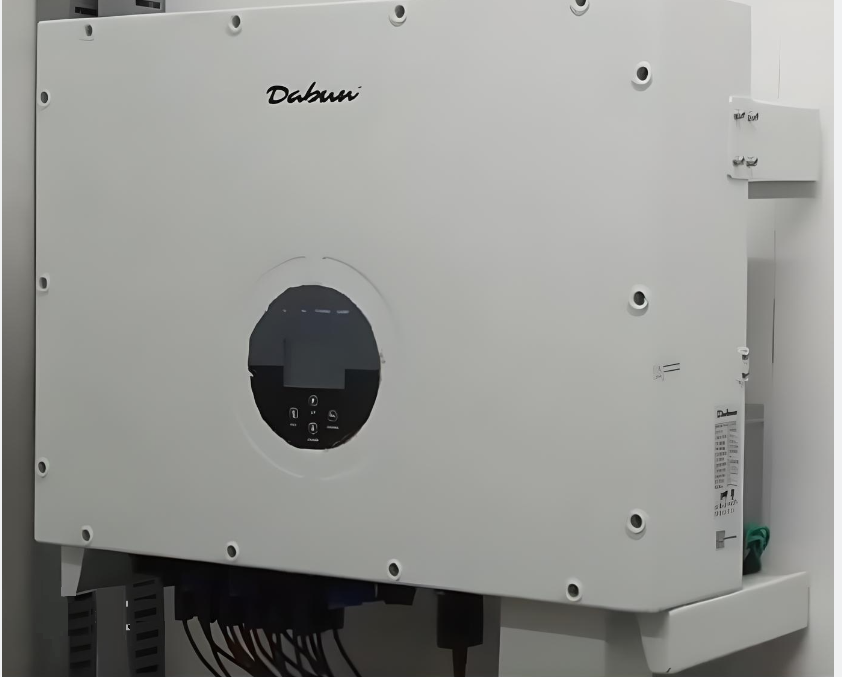

B. DABUN On-grid Inverter 100 kW Three Phase  x 1 PCS

C. DABUN GI Mounting Structure 2 Ft Elevation x 1 Set

D. DCDB 1000V SPD & 30A Fuse x 1 PCS

E. ACDB 50A MCB & 415V SPD x 1 PCS

F. DC wire 4-sq-mm x 25 Mtr

G. AC Wire 4-Core 80 sq-mm armoured  x 100 Mtr

H. Earthing Compound x 3 Bags

I.  Copper Bonded Earthing Rod x 3 PCS

J. Earthing Wire: 6 sq-mm x 100 Mtr

K. Lightening Arrestor x 1 PCS

L. Engineering, Design and Construction Services

M. Installation, Commissioning Services

N. Liasoning Services

How does the system work:

The solar power generated on your terrace is supplied to your household – in case generation exceeds the load, surplus power is exported to grid. Similarly, if the generation is lower, power from grid is added up to power the load. There is a special meter called net meter that keeps track of exports and imports – at the end of month, you need to pay the difference of what you consumed and what you produced.

What all I can run on this set:

There is no restriction on the load – you can run anything you want to run.

Generation Potential:

This will generate approximately 10000 units per month.  You can add up one more panel to this setup thereby increasing power production, saving more electricity and also more subsidy.

Space requirement:

These panels will require around 8000 sq-ft of space (Size of each panel is 7 ft x 4 ft and there are 5 such panels). So, if your balcony has this amount of space and this area receives good amount of sunlight, you can go green with solar.

Can someone do a site visit?

Yes. We can send our engineer to your site to do a site assessment, make recommendations and take up any queries you might have. There is a small charge for this visit. But this is refundable if you make a purchase – our engineer will issue you a coupon which you can use during checkout.

Return on investment:

Typically, the plant will pay for itself, by neutralizing electricity bill, in 3 years. After that, you continue to get free electricity for next 25 years with no further investment.

Will I get subsidy?:

No. This combo is not eligible for subsidy as the solar panels are non-dcr.

In Scope:

Complete Solar Power Generation Set that includes material (inverter, solar panels, earthing kit) as well as services (installation, transport, liasoning with DISCOMS etc). In short, this is a complete end to end package – you do not have to worry about anything else.

Out of Scope:

–

Optional:

• Operation and Maintenance service
• Extended Warranty (post expiry of warranty)

Customization

The configuration stated is for “normal” standard sites. In case, there is a customization required, the cost would be modified accordingly. Examples of such customization requirement are:

• The solar panel mounting structure needs to be elevated as per site requirement
• Access to roof via escalator is not possible. Additional cost to lift the structure will be added.
• Building is more than 2 storeys. Extra cost of wires will need to be added accordingly.
