This system has especially been designed for house-owners who want to get rid of electricity bill for next few decades leaving behind a zero carbon legacy for next generation.

IN SCOPE:

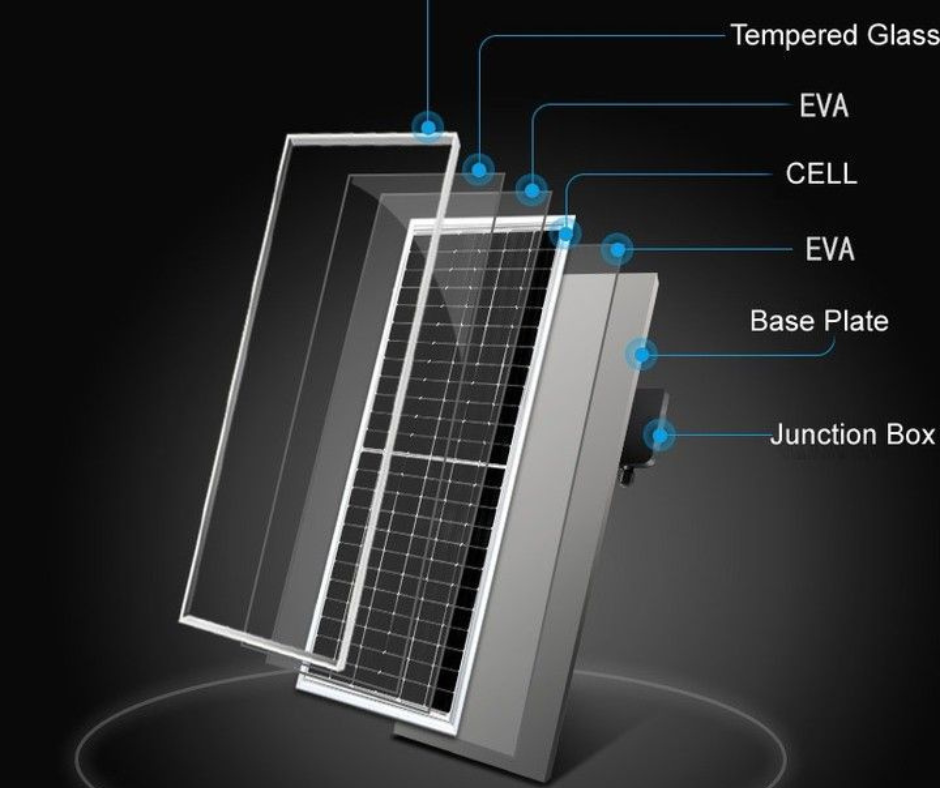

A. DABUN Approved Non-DCR Solar Panel – 540 Wp  x  13 PCS

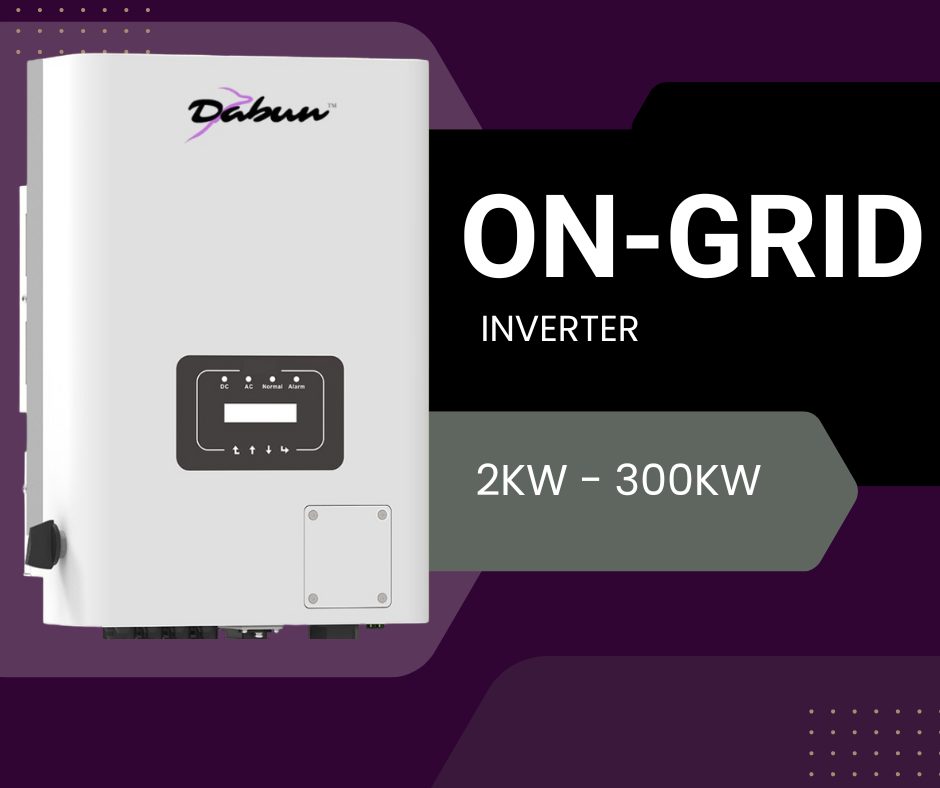

B. DABUN On-grid Inverter 7 kW Three Phase  x 1 PCS

C. DABUN GI Mounting Structure 4 Ft Elevation x 1 Set

D. DCDB 600V SPD & 30A Fuse x 1 PCS

E. ACDB 16A MCB & 220V SPD x 1 PCS

F. DC wire 4-sq-mm x 25 Mtr

G. AC Wire 1-Core 2.5 sq-mm  x 80 Mtr

H. Earthing Compound x 3 Bags

I.  Copper Bonded Earthing Rod x 3 PCS

J. Earthing Wire: 6 sq-mm x 100 Mtr

K. Lightening Arrestor x 1 PCS

L. Engineering, Design and Construction Services

M. Installation, Commissioning Services

N. Liasoning Services



OUT OF SCOPE:

None

HOW DOES THE SYSTEM WORK:

The solar power generated on your terrace is supplied to your household – in case generation exceeds the load, surplus power is exported to grid. Similarly, if the generation is lower, power from grid is added up to power the load. There is a special meter called net meter that keeps track of exports and imports – at the end of month, you need to pay the difference of what you consumed and what you produced.

WHAT ALL CAN I RUN ON THIS SET?

There is no restriction on the load – you can run anything you want to run.

GENERATION POTENTIAL:

This will generate approximately 700 units per month.

SPACE REQUIREMENT

These panels will require around 700 sq-ft of space (Size of each panel is 7 ft x 4 ft ).

CAN SOMEONE DO A SITE VISIT?

Yes. We can send our engineer to your site to do a site assessment, make recommendations and take up any queries you might have. There is a small charge for this visit. But this is refundable if you make a purchase – our engineer will issue you a coupon which you can use during checkout.

RETURN ON INVESTMENT

Typically, the plant will pay for itself, by neutralizing electricity bill, in 3 years. After that, you continue to get free electricity for next 25 years with no further investment.

WILL I GET SUBSIDY?

No. The panels are non-DCR – so no government subsidy is applicable

OPTIONAL:

* Operation and Maintenance service

* Extended Warranty (post expiry of warranty)

CUSTOMIZATION:

The configuration stated is for “normal” standard sites. In case, there is a customization required, the cost would be modified accordingly. Examples of such customization requirement are:

* The solar panel mounting structure needs to be elevated as per site requirement

*Access to roof via escalator is not possible. Additional cost to lift the structure will be added.

*Building is more than 2 storeys. Extra cost of wires will need to be added accordingly.
