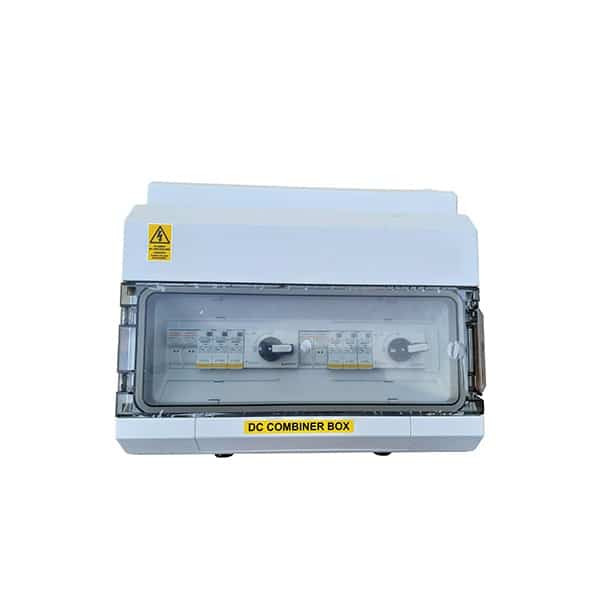

DCDB 1-1 – 1000V
₹6,100.00
- Suitable for connecting to on-grid SINGLE MPPT up to 10KWSolar inverter.
- The DCDB is connected between PV panels and the on-grid inverter.
- DCDBs expect 1 string of PV panels up to a maximum of 19 no’s in series.
- Max Current Per Input string: 20 A
- Max Input & Output voltage: 1000 V
- DCDB is fitted with 1 set of 15 A Fuse on the positive and negative side, and DC SPD for protecting from the surge.DCDB also contains secondary protection of 16/ 32 A 1000V DC Switch which is to be used as a switch in case of operational maintenance to turn PV string on and off.
- Input and output are connected through Cable glands.
- Enclosure: IP65 rated Waterproof poly-carbonate Enclosure with a transparent lid, suitable for outdoor installation.
- Dimension: 18 Way (403 x333 x129mm)
- Weight: 37g
- Colour: grey
